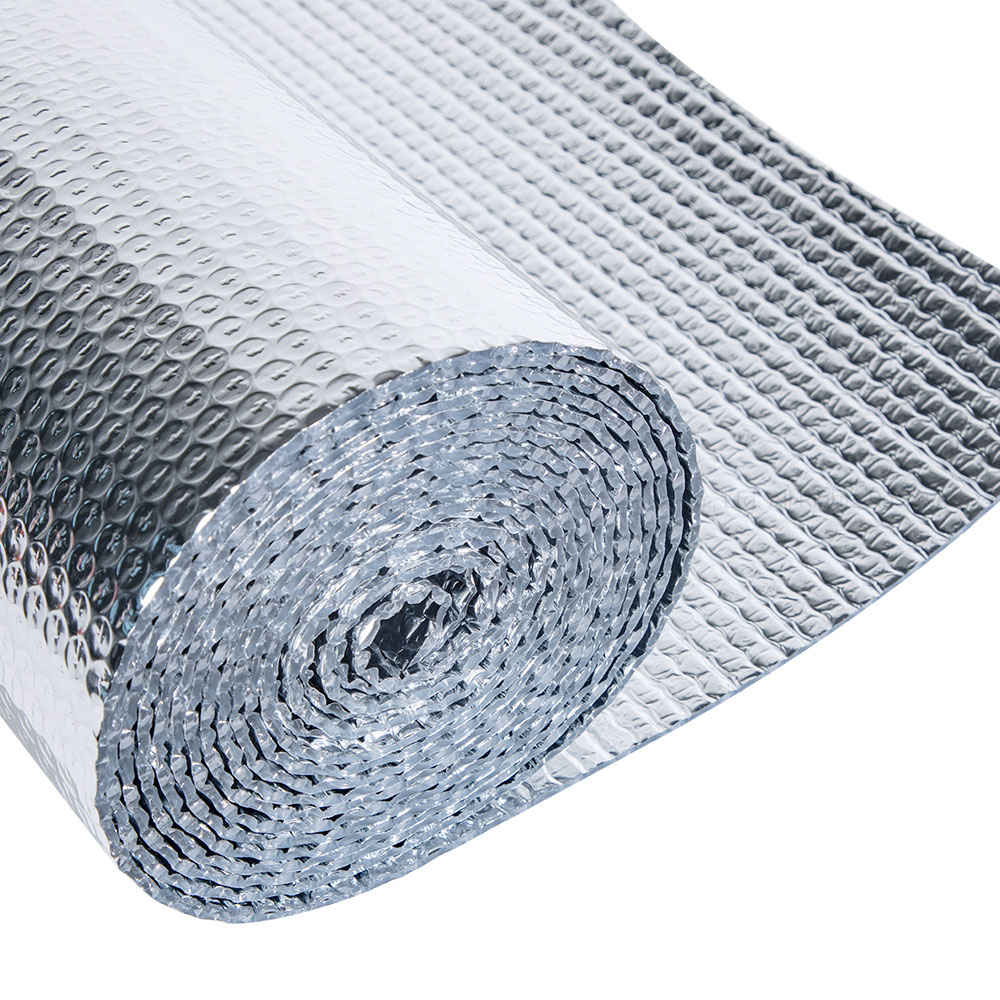

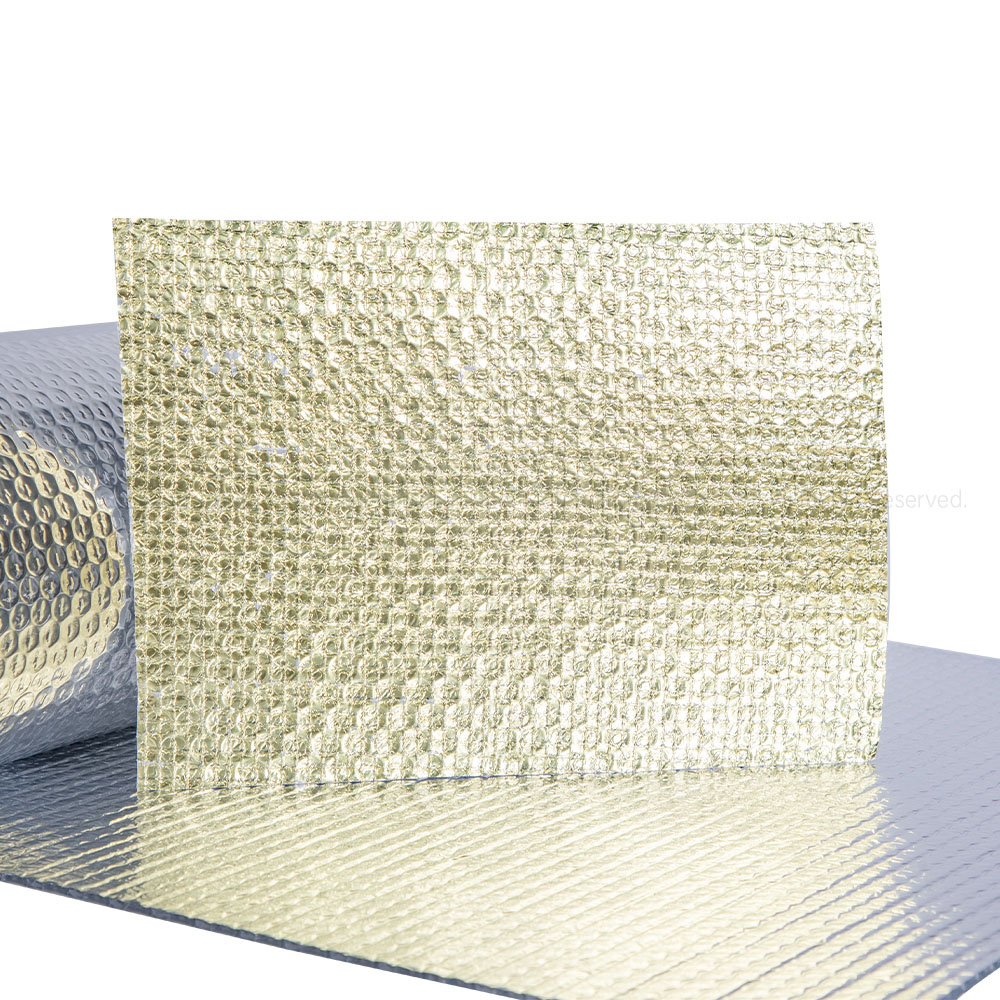

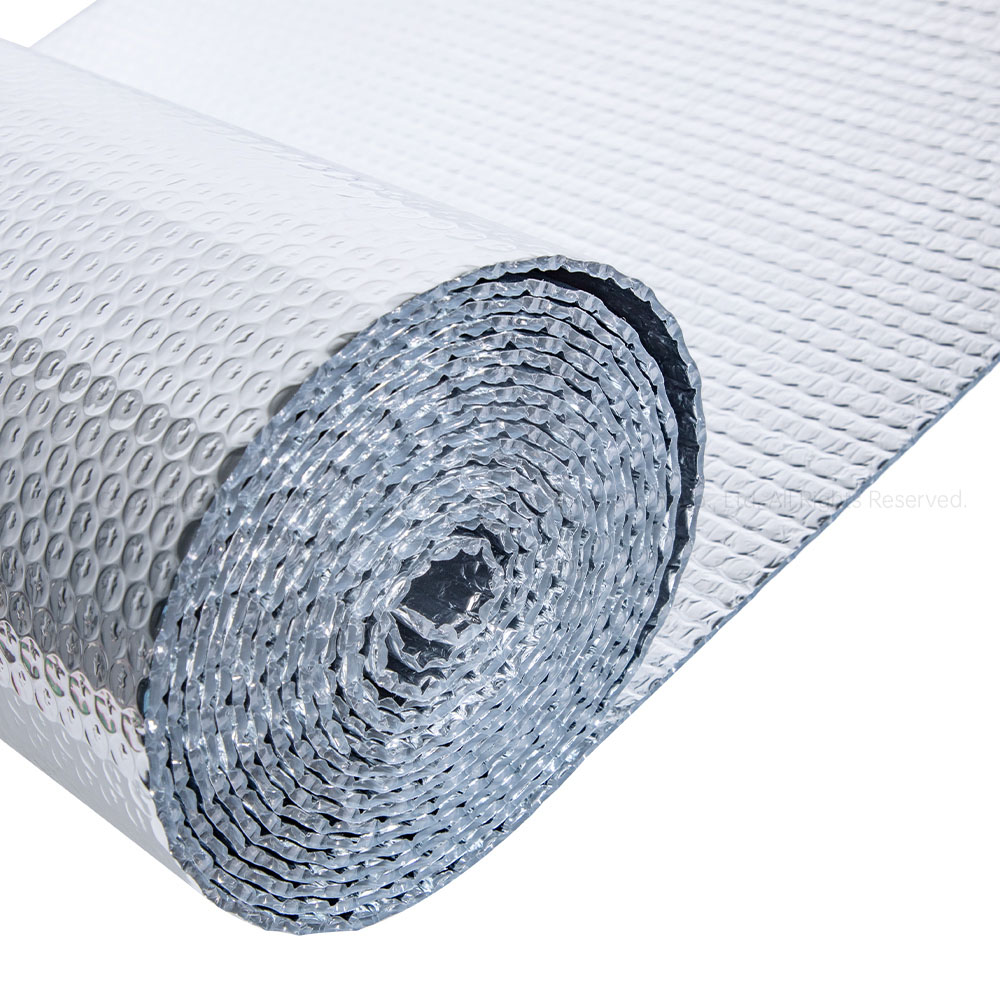

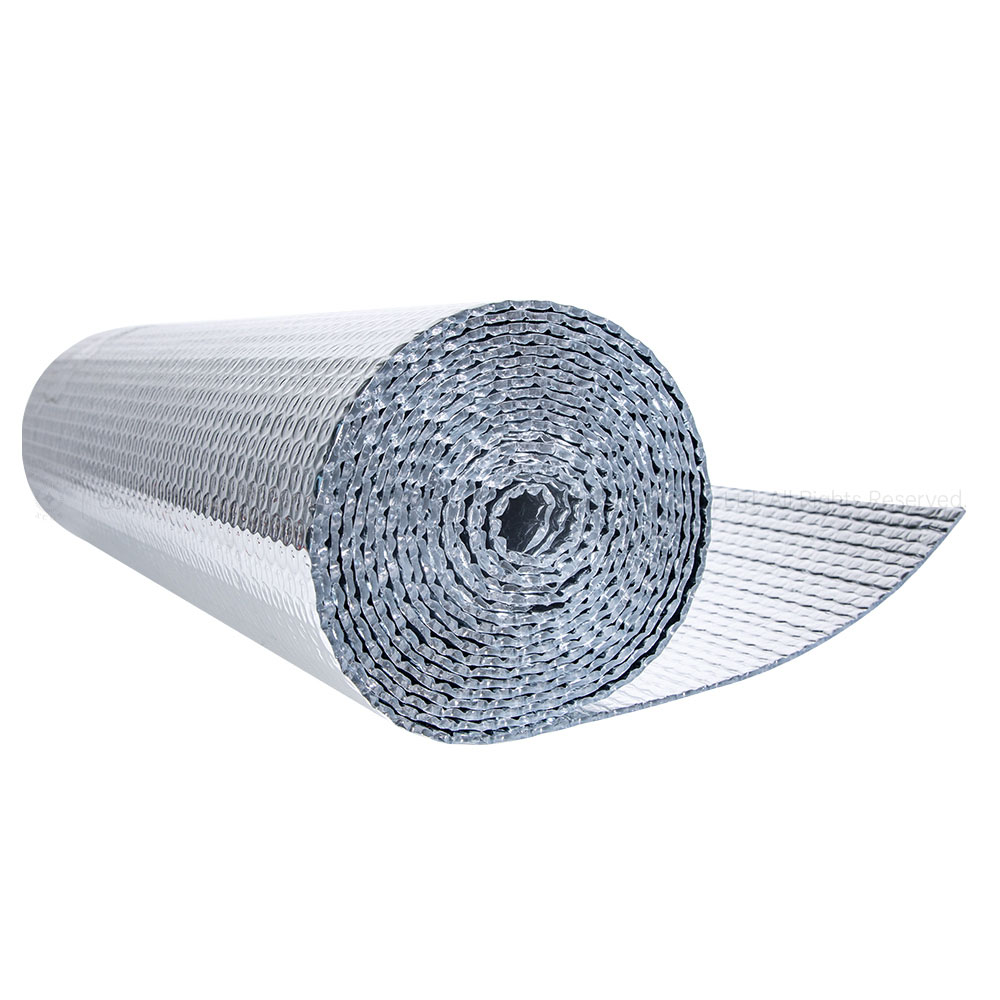

The produc ( Air cell insulation/reflective aluminium bubble foil insulation )t consists of two layers of aluminum foil with
plastic bubble laminated between the aluminum foil,provides excellent insulation: Reflects up to 97% of radiant energy in addition to resisting other types of heat transfer from conduction, convection and radiation. The two side aluminum foil forms an effective barrier against moisture, air currents and vapors.
Item | Heat insulation material/reflective aluminium bubble foil insulation |

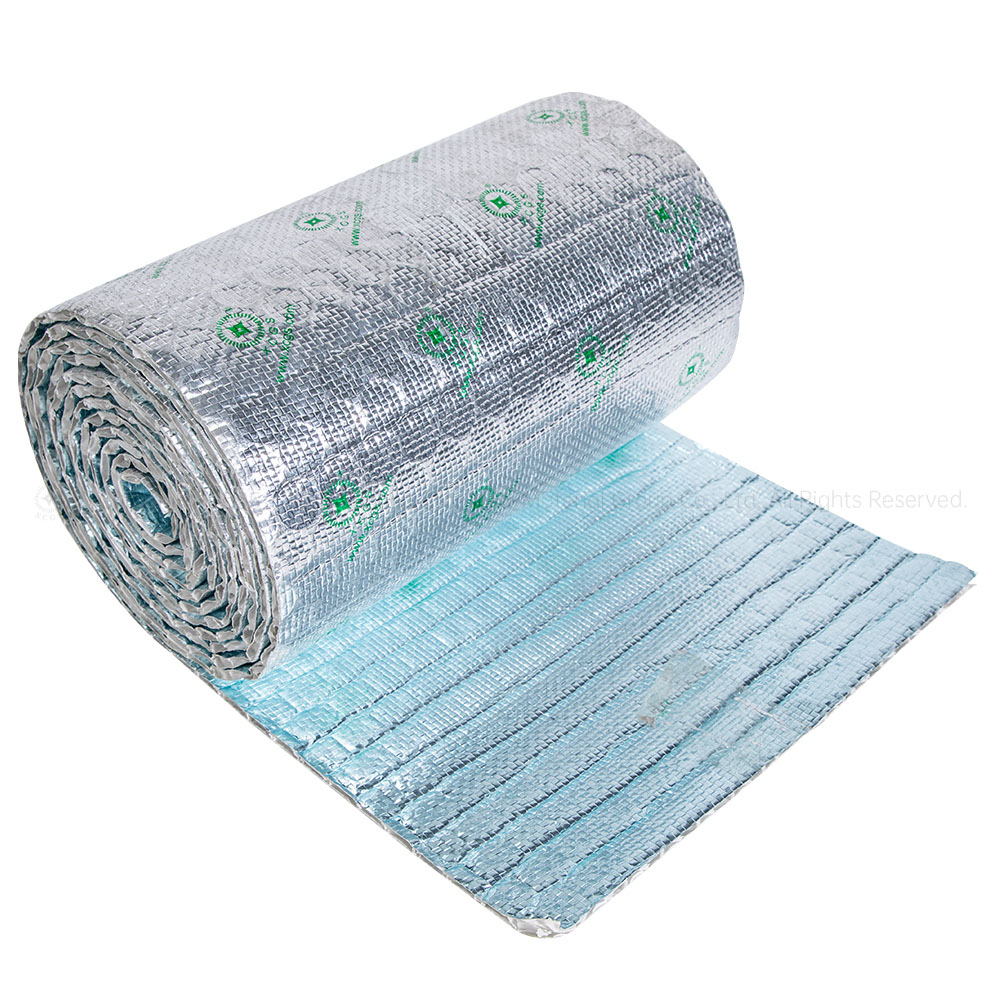

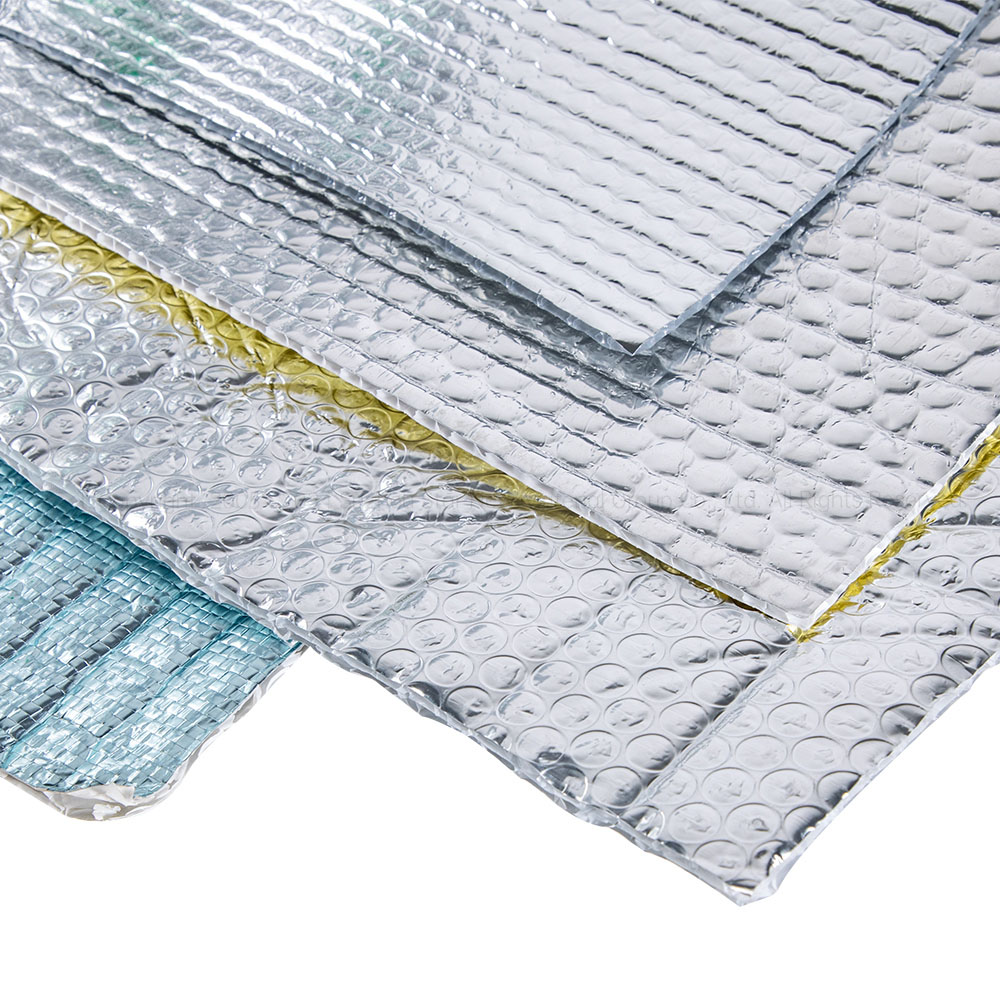

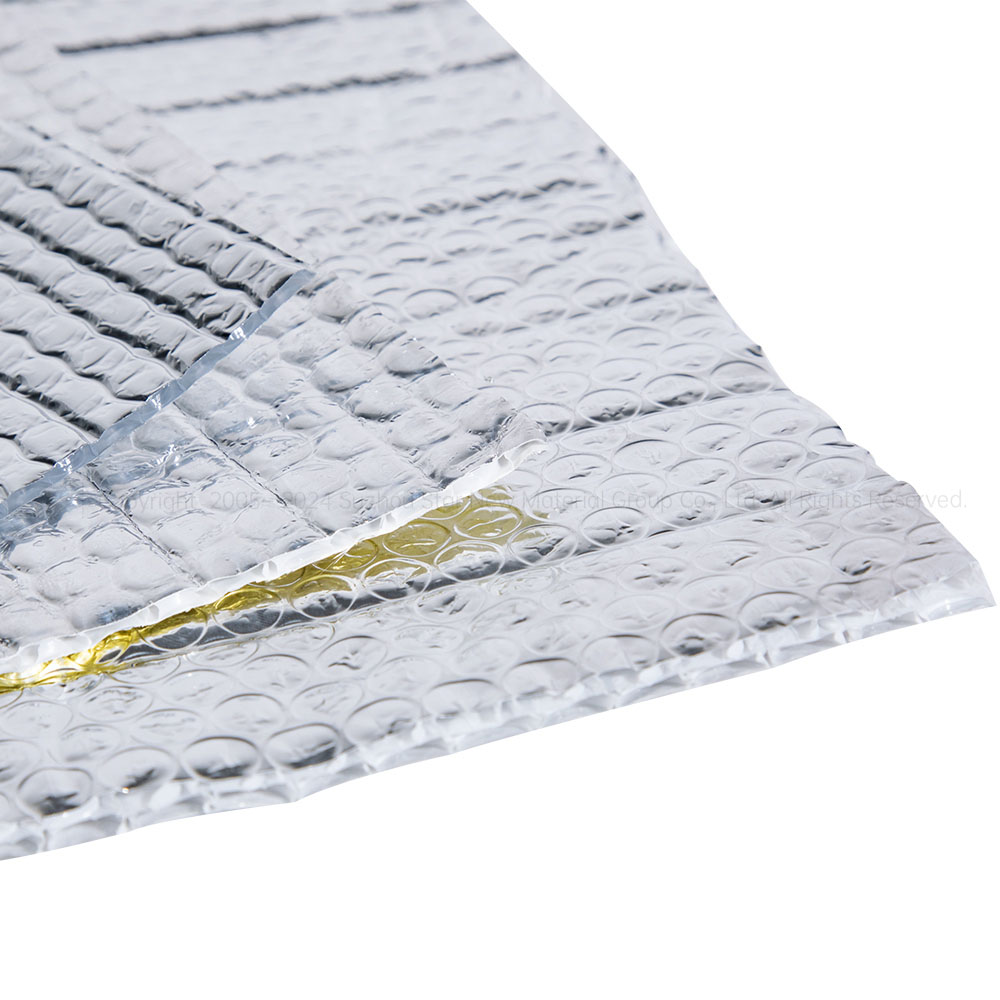

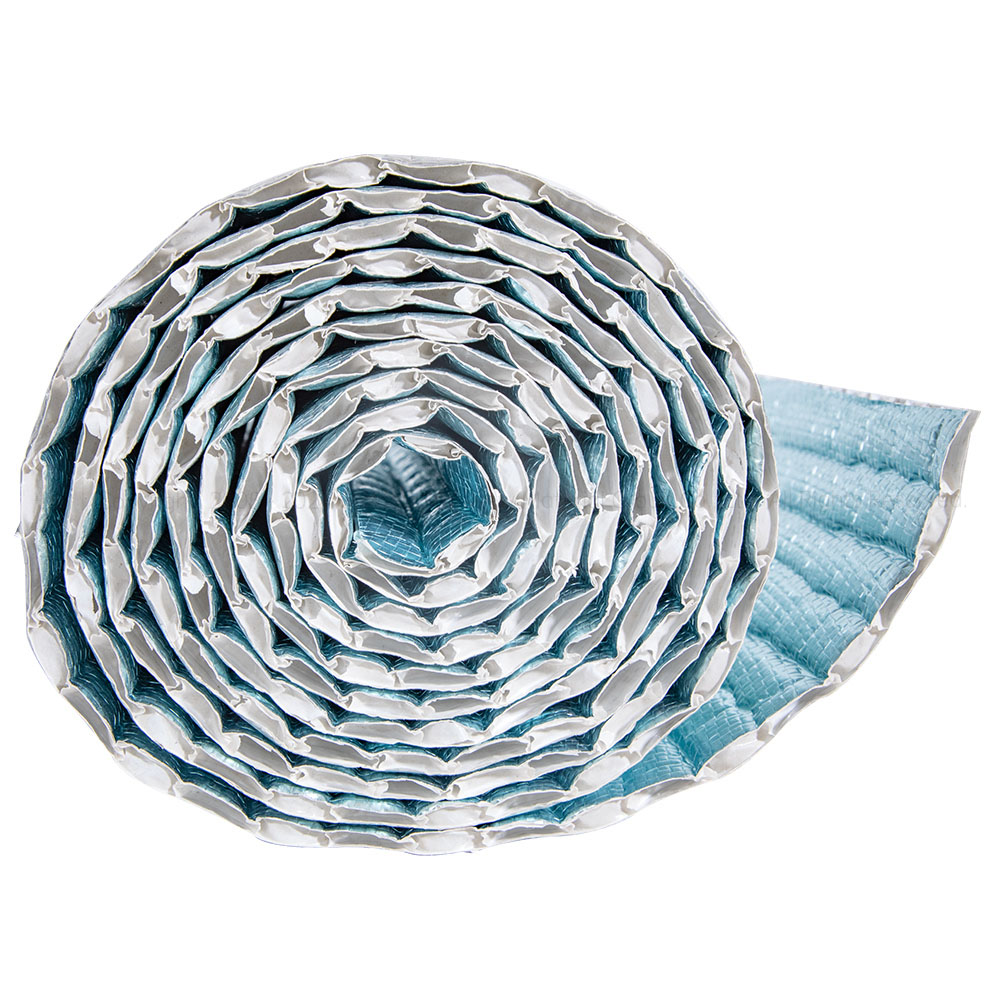

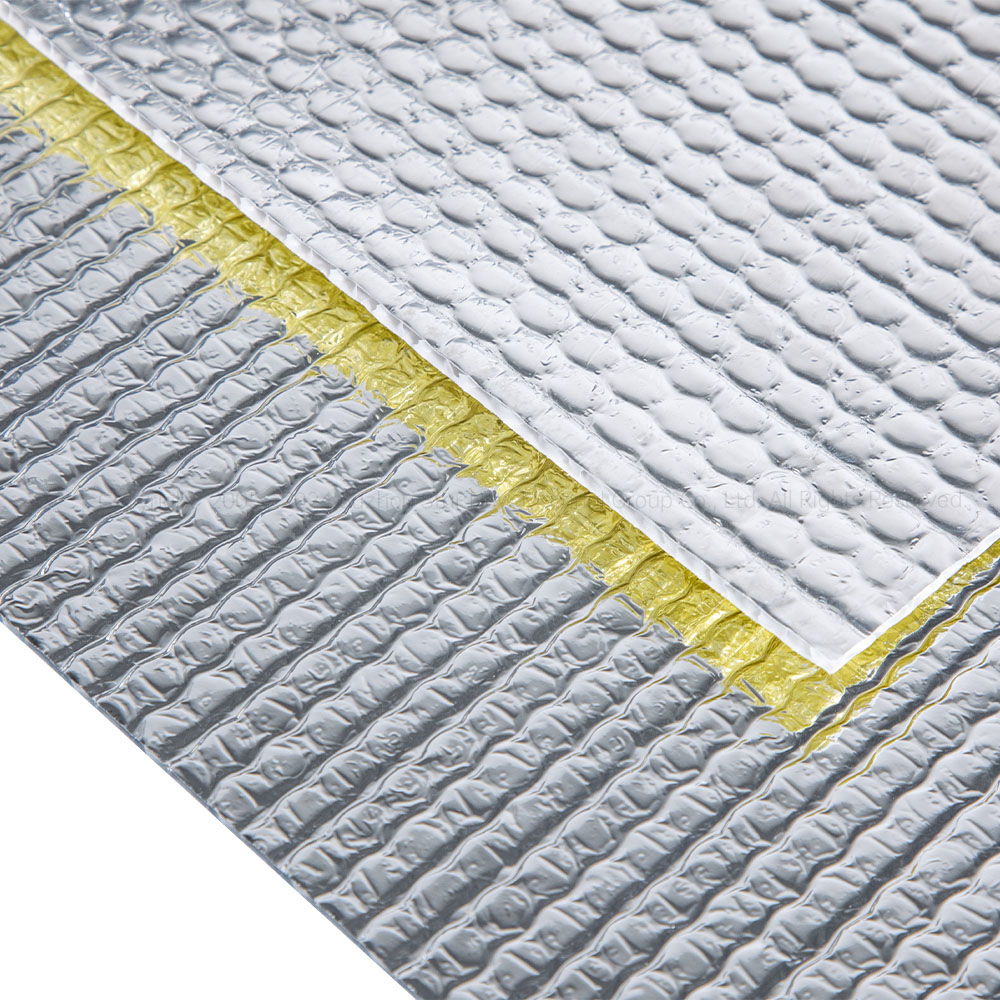

| Main Structure | 1) Al / bubble / Al (bubble: ¢ : 10mm, H: 4mm or H: 2.5mm) 2) Al / bubble + bubble / Al (bubble: ¢ : 10mm, H: 4mm or H: 2.5mm) 3) Al / bubble / white PE anti-flaming sheet (bubble: ¢ : 10mm, H: 4mm or H: 2.5mm) 4) Al / white anti-flaming bubble / Aluminum with blue color (bubble: ¢ : 20mm, H: 7mm) 5) AL / white anti flaming bubble / woven cloth /AL ( bubble: ¢ : 20mm, H: 7mm ). Normal roll size: 1.2m x 40m / roll, various lengths available upon requests |
| Thickness | 4mm or customzied |
| Roll Size | 1.2*40m per roll |
| Reflectivity | 97% |
| Bubble Size | 10*2.5/10*3/10*4/10*5/20*7/25*8/25*10 |
| Logo Printing | OEM Available |
Application
Roof,Ceiling,Wall,Floor,Attic,Livestock Shelters,Basement,Factory buildings,Duct wrappings,Container liner,Sun-stop cover and vehicles.
Keep rooms warmer in the winter and cooler in the summer by installing bubble insulation. This general purpose insulation can be used for almost any DIY application – use it anywhere from roofs, walls and floors to motorhomes, boats and cellars.
It reflects radiant heat back into the living space – this helps to retain warmth, cutting down on unnecessary energy use and saving you money. Its core bubble profile traps air within the small bubble pockets to offer great thermal benefits, while the outer aluminium foil layers increase the overall performance, due to their high reflectiveness.
Installation Methods
1.Purchase approximately 10% more for overlapping and to provide the proper air gap between the purlins.
2.Cover the metal roof purlins with double-sided adhesive tape. Unroll the foil wrap insulation and attach it to the first purlin.
3.Secure the bubble foil to the framing members with furring strips. Use a drill equipped with a screwdriver bit to drive the screws into the framing members.
4.Cover the seams of the bubble insulation with foil tape.
*
